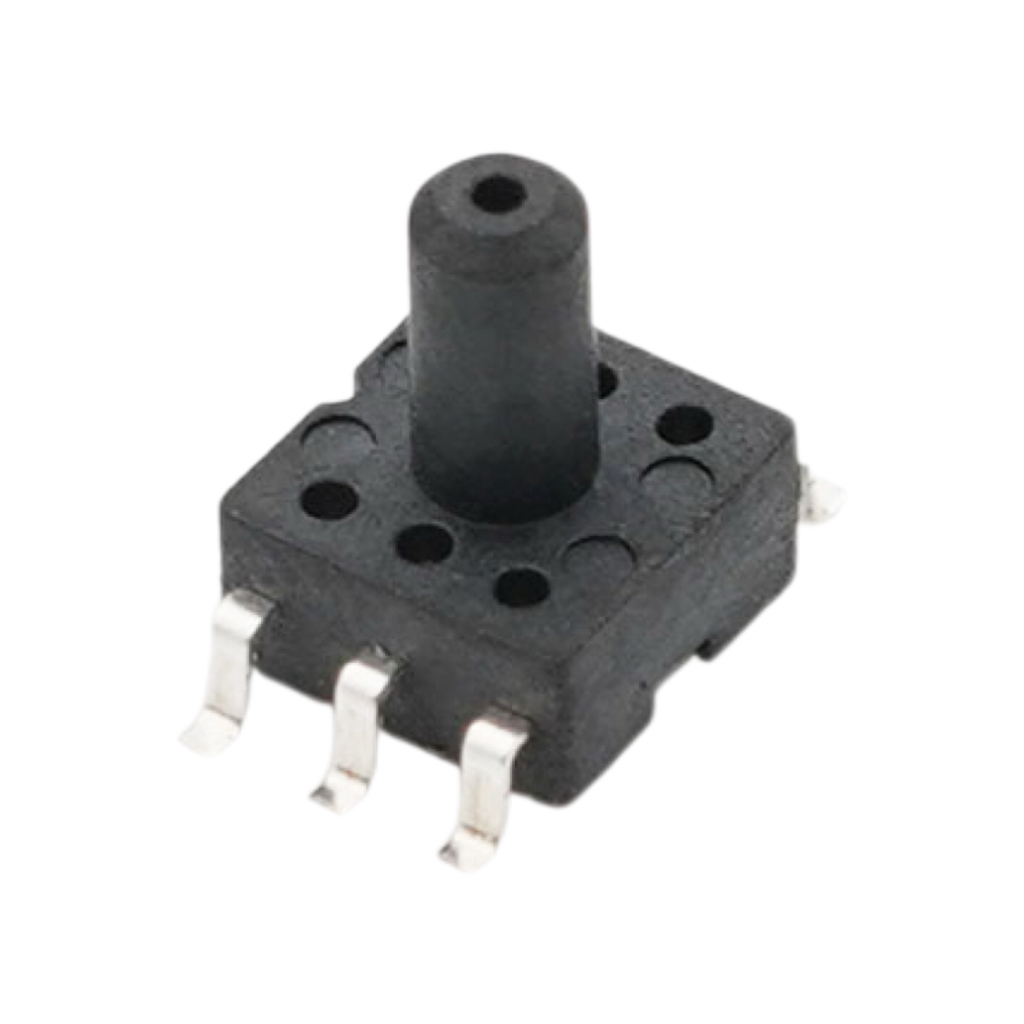

GZP160 Pressure Sensor Chip

Product Description

    The GZP160 piezoresistive pressure sensor chip is suitable for biomedicine, automotive electronics and other fields. Its core part is a silicon piezoresistive pressure-sensitive chip processed by MEMS technology. The pressure-sensitive chip is composed of an elastic membrane and four resistors integrated on the membrane. The four piezoresistors form a Whiston bridge structure. When pressure acts on the elastic membrane, the bridge will generate a voltage output signal that is linearly proportional to the applied pressure.

Product Features

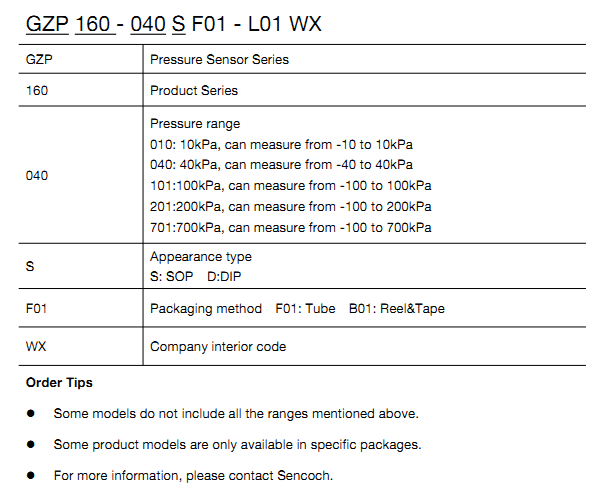

    Measurement range -100kPa～0kPa...350kPa MEMS technology

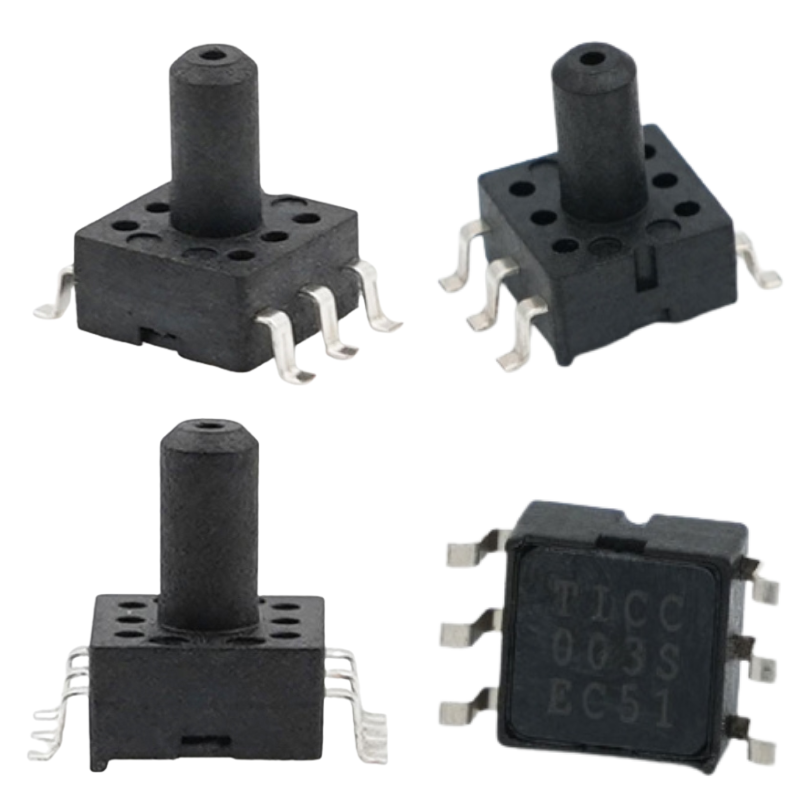

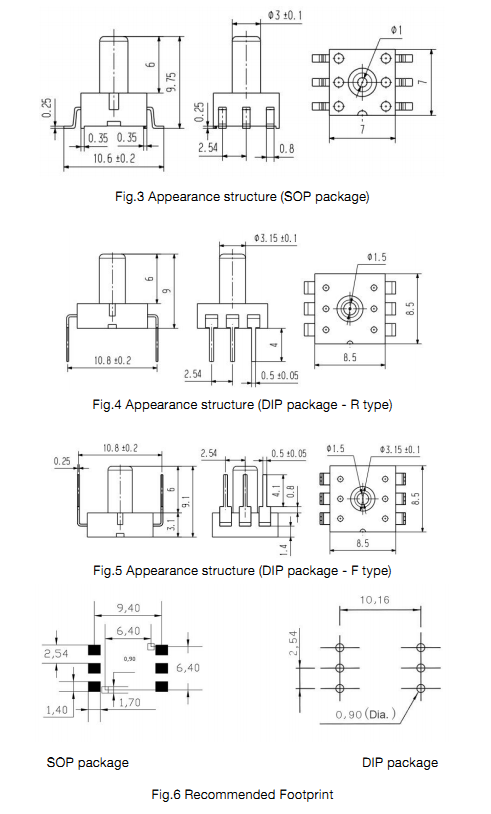

Table pressure type SOP or DIP packaging form
Suitable for non-corrosive gases
The back pressure chamber of the chip is under pressure

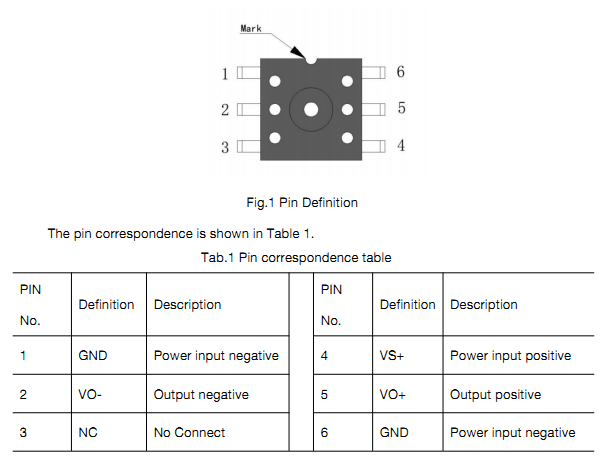

Pin definitions can be selected flexibly

Application Field
    Electronic blood pressure monitor, ventilator, oxygen generator, monitor, nebulizer and other medical fields
    Negative pressure measurement, pressure gauge, pneumatic components and other fields
    Massagers, massage chairs, air mattress beds and other sports and fitness equipment fields
    Vacuum packaging machine, vacuum mixer, vacuum wall breaker, vacuum preservation box, vacuum pump and other vacuum negative pressure fields
    Washing machines, beer machines, coffee machines, vacuum cleaners, water purifiers, water heaters and other household appliances
